From portable air-cooled welders to 6000W industrial systems and dedicated cleaning lines, all featuring certified laser sources, integrated controls and dynamic wobble heads.
Water-cooled 4-in-1 workhorses for daily fabrication and heavy plate.
Compact, chiller-free and fully portable. The go-anywhere welder.

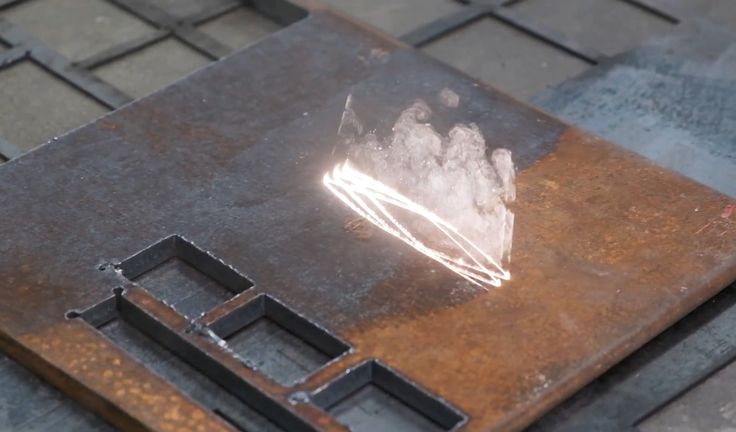

Dedicated cleaning line for rust, paint and oxide. No media, no chemicals.

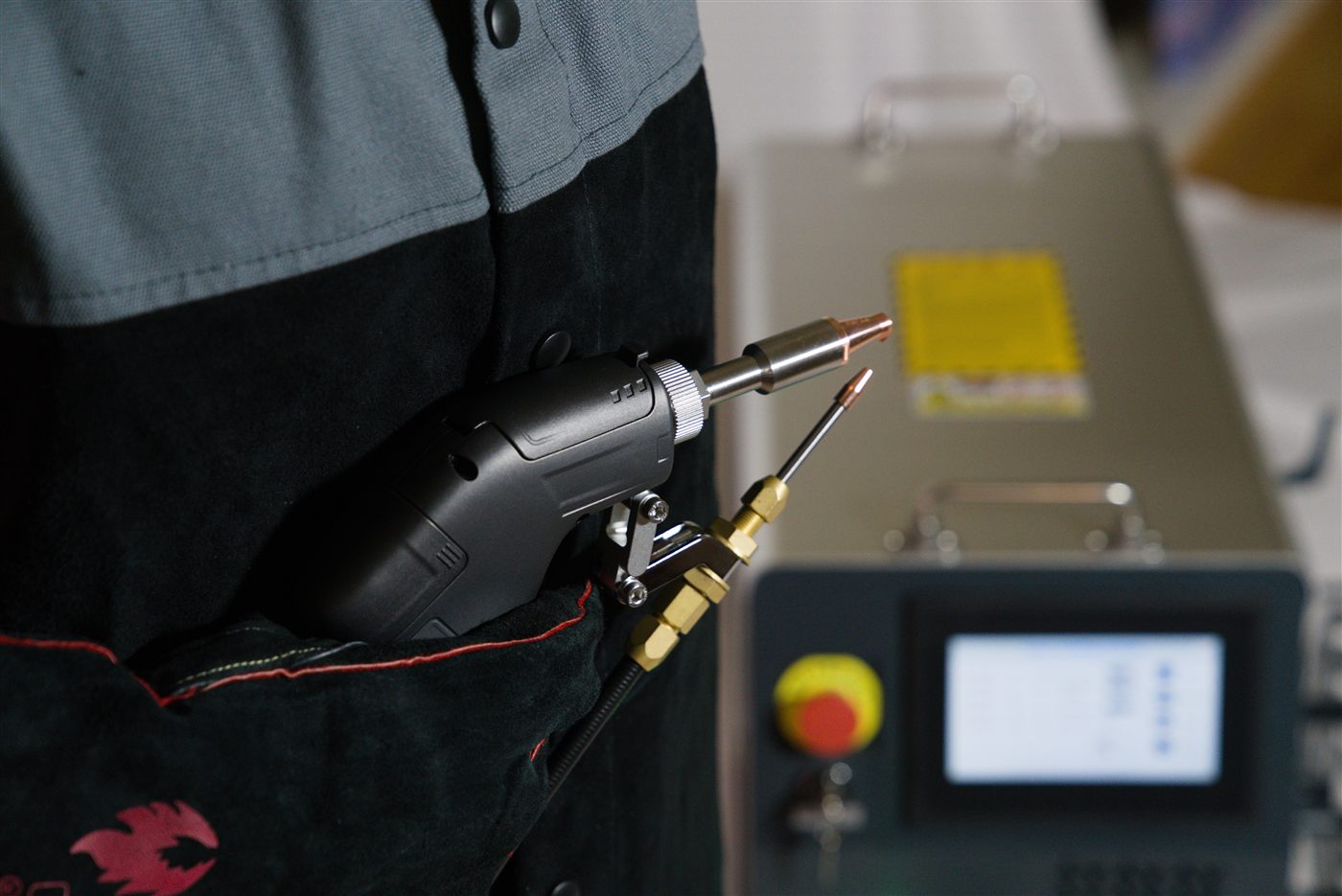

A compact, air-cooled 4-in-1 handheld fiber laser system with a 1500W MAX laser source. No water chiller required. The ideal unit for portable on-site work, tight workshop spaces and mobile fabrication. Welds, cuts, seam-cleans and removes rust in a lightweight, easy-to-transport package.
| Specification | NX-1500 Air |
|---|---|
| Laser Power | 1500W |
| Laser Source | MAX (CE Certified) |
| Laser Type | Fiber laser, 1080nm |
| Functions | Welding, Cutting, Seam Weld Cleaning, Rust Removal |

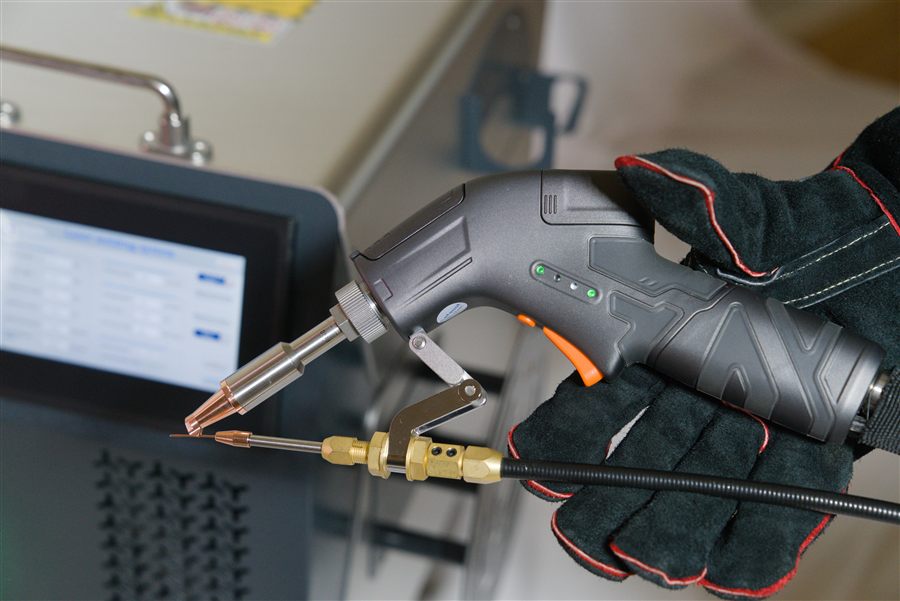

| Control System | SUP Single Wobble, Grip-Mounted Controls |
| Cooling | Air-Cooled (no water chiller required) |
| Wire Feeding | Built-in wire feeding system |
| Cable Length | 5 meters |
| Welding Thickness | 0.5–4 mm (material dependent) |
| Voltage | 1-Phase 220V, 60Hz |
| Dimensions | 0.9 × 0.85 × 0.8 m |

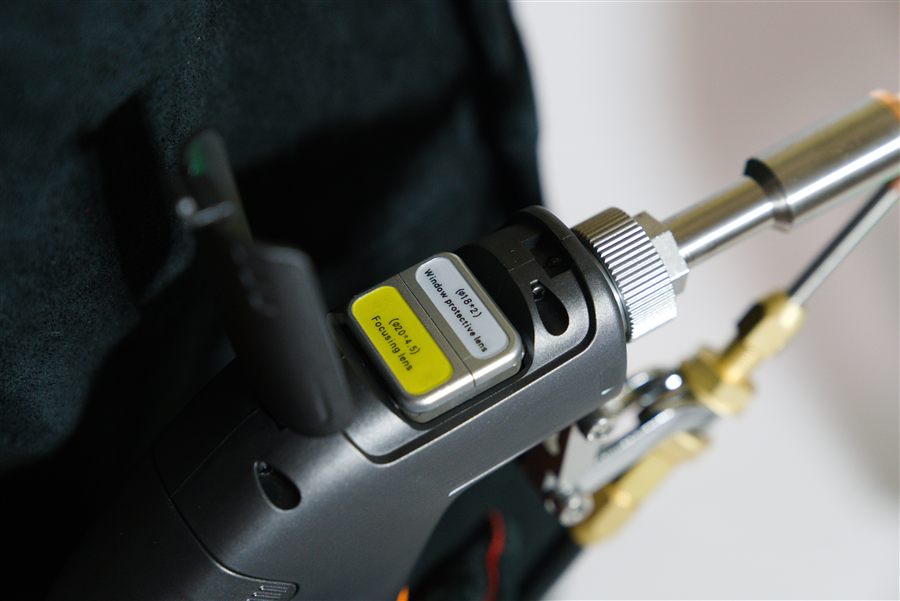

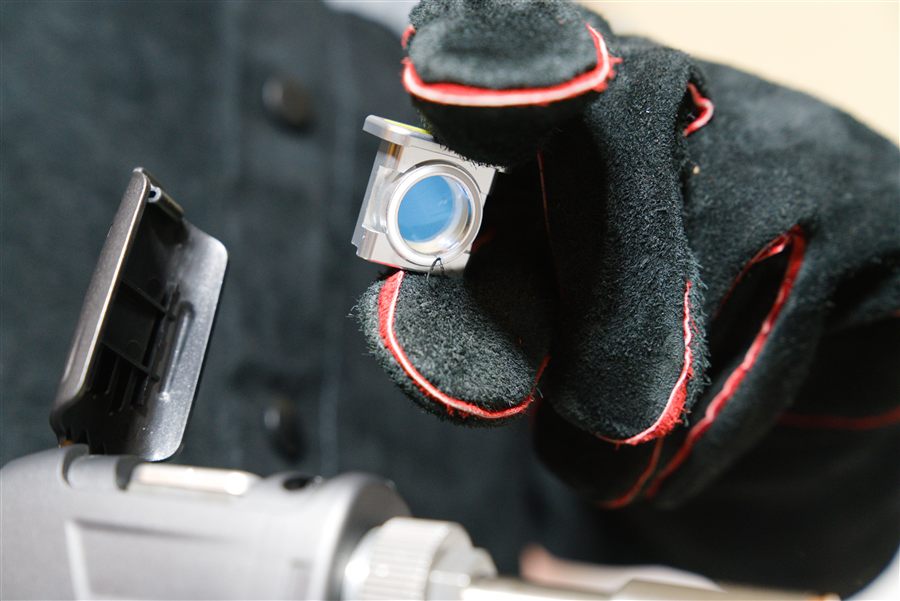

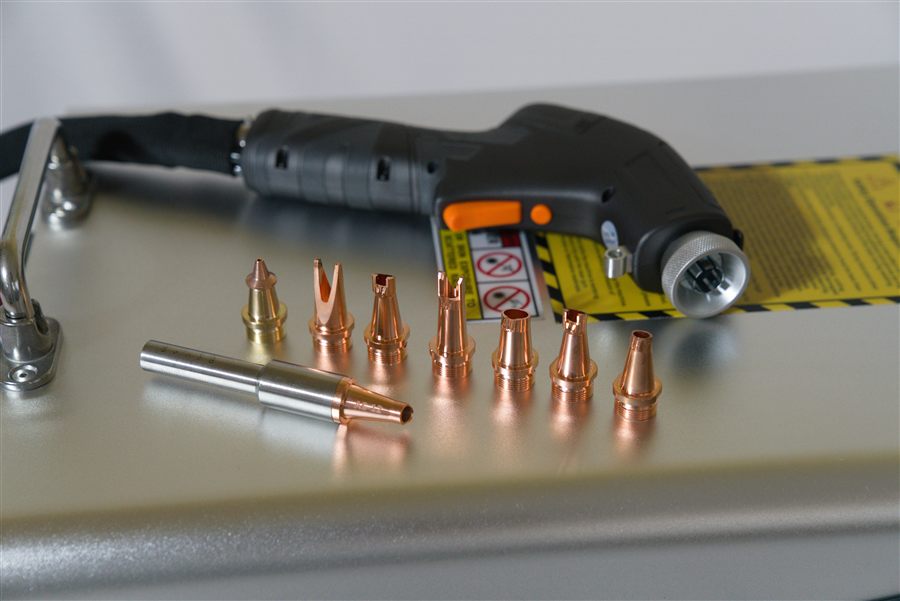

Includes safety goggles, tool box, 10× protective lenses, 10× nozzles, 1× laser cleaner kit, user manual, guide videos and free online support.

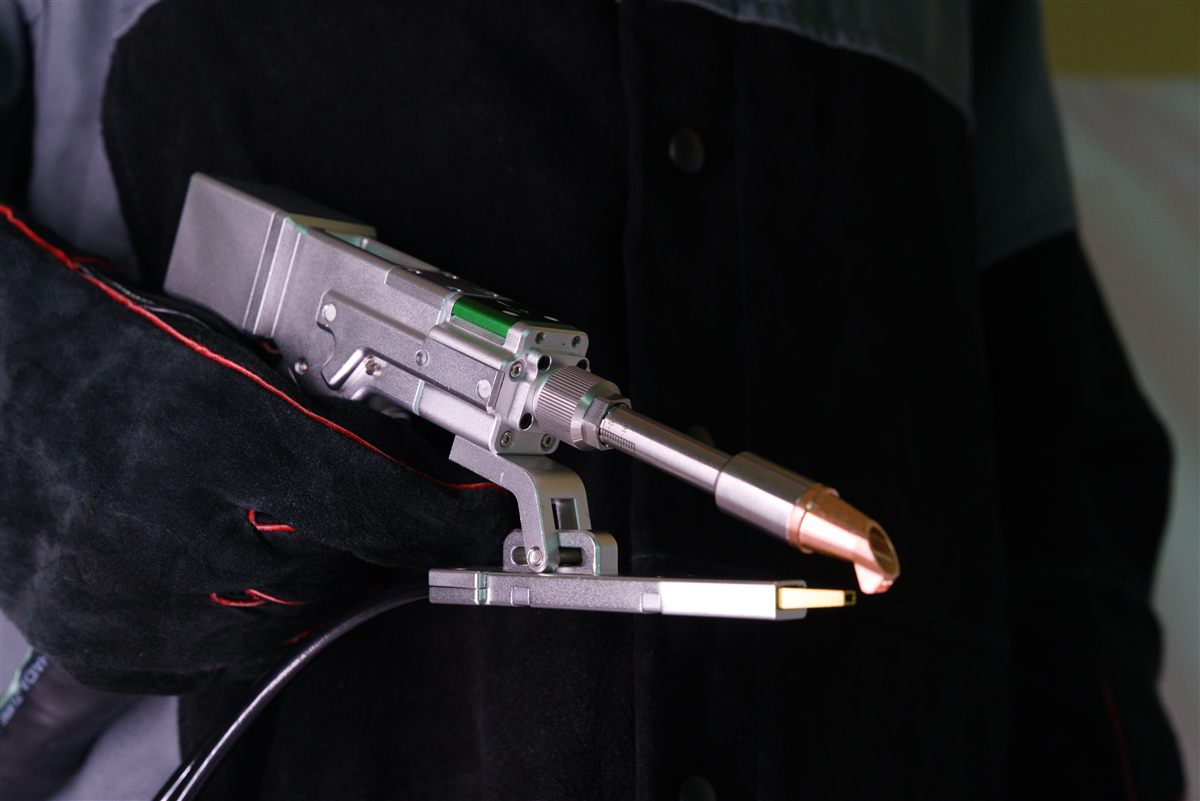

Water-cooled, full-featured 4-in-1 welders from 1200W to 6000W. The Pro line (1200/1500/2000W) is your versatile daily workhorse with Raycus CE sources and a 9m cable. The Max/Ultra flagship tier (3000/6000W) handles thick-plate welding, aggressive cutting and large-scale cleaning that lower-wattage machines can't reach.
Recommended max for a strong, single-sided full-penetration weld. Double-sided welding roughly doubles these capacities.
| Material | 1200W | 1500W | 2000W | 3000W | 6000W |
|---|---|---|---|---|---|
| Carbon Steel | 3 mm | 4 mm | 6 mm | 8 mm | 10 mm |
| Stainless Steel | 3 mm | 4 mm | 6 mm | 8 mm | 10 mm |
| Aluminum | 1.5 mm | 2.5 mm | 3.5 mm | 5 mm | 8 mm |
| Galvanized Steel | 2.5 mm | 3.5 mm | 4.5 mm | 6 mm | 8 mm |
| Brass | 1 mm | 1.5 mm | 2 mm | 3 mm | 6 mm |
| Copper | 1 mm | 1.5 mm | 2 mm | 3 mm | 6 mm |
Supports butt, edge, tee, corner and lap joints. Wire feeding recommended above 1mm (0.8–1.2mm wire). Welds steel, stainless, aluminum, brass, copper, titanium, nickel and dissimilar metal combinations.
| Specification | NX-1200 Pro | NX-1500 Pro | NX-2000 Pro |
|---|---|---|---|
| Laser Power | 1200W | 1500W | 2000W |
| Laser Source | Raycus (CE) | Raycus (CE) | Raycus (CE) |
| Laser Type | Fiber, 1080nm | Fiber, 1080nm | Fiber, 1080nm |
| Functions | Weld/Cut/Clean/Seam | Weld/Cut/Clean/Seam | Weld/Cut/Clean/Seam |
| Cooling | S&A Water Chiller | S&A Water Chiller | S&A Water Chiller |
| Cable | 9m (14m optional) | 9m (14m optional) | 9m (14m optional) |
| Welding Thickness | 0.5–3 mm | 0.5–4 mm | 0.5–6 mm |
| Voltage | 1-Ph 220V | 1-Ph 220V | 1-Ph 220V |
| Dimensions | 1.05 × 0.8 × 1.1 m | ||
| Specification | NX-3000 Max | NX-6000 Ultra |
|---|---|---|
| Laser Power | 3000W | 6000W |
| Laser Source | Raycus (CE) | Raycus / MAX / RECI / BWT |
| Laser Type | Fiber, 1070±20nm | Fiber, 1070±20nm |
| Voltage | 3-Phase 380V, 60Hz | 3-Phase 380V, 60Hz |
| Cooling | S&A Water Chiller | Industrial Water Cooling |
| Welding Wobble Width | 0–6 mm | 0–8 mm (extended range) |
| Welding Thickness | 0.5–8 mm | 0.5–10 mm+ |
| Assist Gas | Nitrogen / Argon | Nitrogen / Argon, 0.2–1.2 MPa |
| Cable Length | 9m (14m optional) | 9m (14m optional) |
| Dimensions | 1.85 × 0.8 × 1.1 m | 1.85 × 0.8 × 1.1 m |
A purpose-built continuous laser cleaning line with Raycus CE-certified sources and Relfar single-wobble control. Available from 1200W to 6000W, the C Series is engineered specifically for surface preparation, rust removal, paint stripping, oxide-layer removal, oil cleaning and weld-mark cleaning. No media, no chemicals, no substrate damage.
| Spec | NX-1200C | NX-1500C | NX-2000C | NX-3000C | NX-6000C |
|---|---|---|---|---|---|
| Power | 1200W | 1500W | 2000W | 3000W | 6000W |
| Source | Raycus CE | Raycus CE | Raycus CE | Raycus CE | Raycus/MAX/RECI/BWT |
| Function | Cleaning | Cleaning | Cleaning | Cleaning | Cleaning |
| Cooling | S&A Chiller | S&A Chiller | S&A Chiller | S&A Chiller | Industrial Water |
| Voltage | 1-Ph 220V | 1-Ph 220V | 1-Ph 220V | 3-Ph 380V | 3-Ph 380V |
| Cable | 9m (14m optional) | 9m (14m optional) | 9m (14m optional) | 9m (14m optional) | 9m (14m optional) |
| Dimensions | 1.05×0.8×1.1m | 1.05×0.8×1.1m | 1.05×0.8×1.1m | 1.85×0.8×1.1m | 1.85×0.8×1.1m |
No media to buy, store or dispose of, and no dust containment to set up before you can start.
| Factor | Laser Cleaning | Sandblasting |
|---|---|---|
| Footprint | Compact wheeled unit, plugs into standard power | Compressor, blast pot & hoses, needs a dedicated space |
| Media | None required | Constant abrasive media (sand, grit, beads) consumed on every job |
| Cleanup After | Vaporized residue, wipe down and go | Spent media, dust and debris to contain, shovel and dispose of |
| Setup Time | Roll in, plug in, start working | Containment tenting, PPE and compressor setup first |
| Substrate Effect | Non-abrasive, no surface profile change | Can pit or roughen softer metals |
Tell us your materials, thicknesses and workspace, and we'll recommend the right NX-Series unit and set up a hands-on demo.
